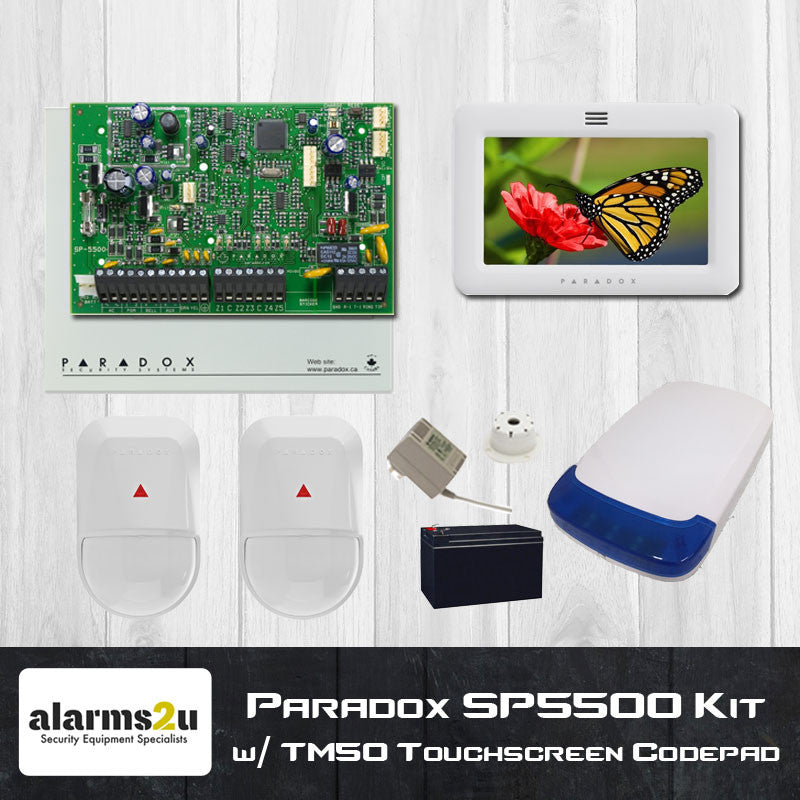

Kit Includes

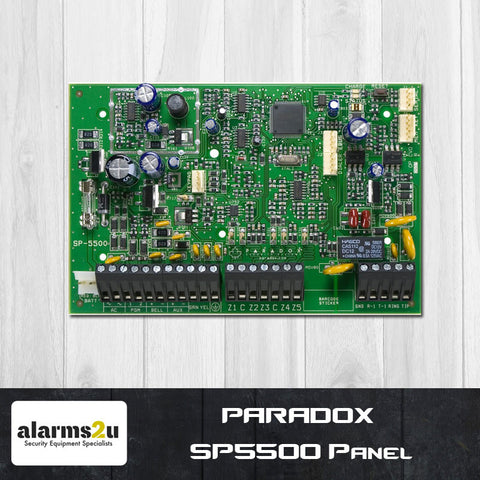

1 x Paradox SP5500 Series Control Panel

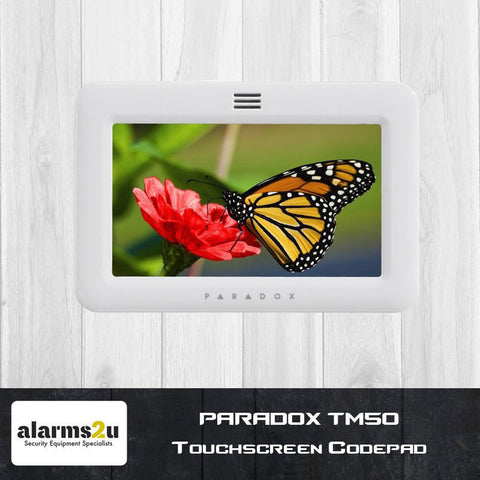

1 x Paradox TM50 Touchscreen Codepad

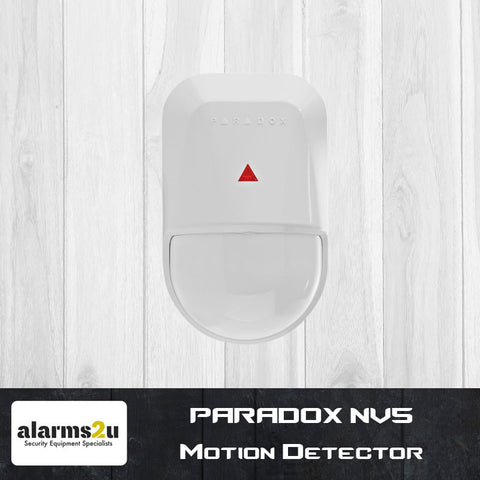

2 x Paradox NV5 PIR Motion Detectors

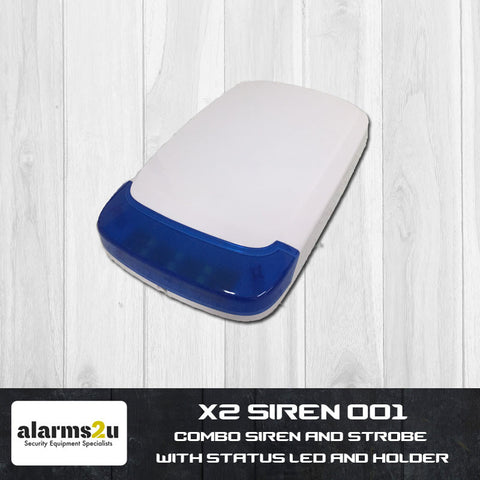

1 x External X2 Slim Siren-Strobe Box
1 x Internal Top Hat Screamer
1 x 12v 7ah Back Up Battery
1 x 16vac Power Supply
1 x Paradox Metal Enclosure
Overview
Paradox Spectra series alarm panels offer a combination of innovative features and an advanced communication bus for a unique expandable security system. Through its communication bus, Spectra can be expanded via wireless and hardwired expansion modules and a variety of accessory modules. With its reliable communication technology, flexible expansion and great-looking keypads, Spectra is an ideal security system for any residential or commercial installations that require up to 32 zones of protection.
With the introduction of the SP series, the reliability of Spectra panels is expanded to provide you with more features, such as StayD, more on-board zones (expandable to 32), more on-board PGMs (expandable to 16), and support for the new GSM Module (PCS Series), Plug-In Voice Dialer (VDMP3) and Internet Module (IP100). With their in-field firmware upgrade capability, the Spectra SP series allows installers to upgrade their system without hassle — quickly, easily and on site. And to further facilitate installation, every Spectra SP series panel can be configured using easy-to-follow menu-driven programming.
Experience a new way of living with StayD offered in the Spectra SP Series. StayD simplifies your life and makes it safer by protecting you 24 hours a day, 7 days a week without ever having to disarm the system – even when entering an armed area. StayD lives with you and protects you at all times, without any unprotected periods, and while automatically re-arming the system so you don’t have to remember to do it.
Features
Supports StayD mode
4-wire expansion bus
5 hard-wired zones (10 onboard with zone doubling and expandable to 32 zones with added modules)
2 onboard PGMs (expandable to 16 PGMs with added modules)
2 Partitions/Areas
32 User Codes
Supports PCS GSM Module
Supports IP150 Internet Module
Supports VDMP3 Plug-in voice dialer
Supports REM3 hand-held remote keypad - requires remote receiver module
Supports iParadox app
Menu-driven programming for the Installer, Master and Maintenance codes
Multiple phone numbers: 3 for monitoring station, 5 for personal dialing and 1 for pager reporting (SP65: via PCS200 only - GSM reporting)
Patented 2 opto coupler dialer circuit - the most reliable dialer in the industry - US Patents 5751803, RE39406 (N/A with the SP65)
Automatic Daylight Savings Time feature
Push button software reset (reset to default values and restart)
256 events buffered
Fits in 20cm x 25.5cm x 7.6cm (8in x 10in x 3in) and 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal boxes
