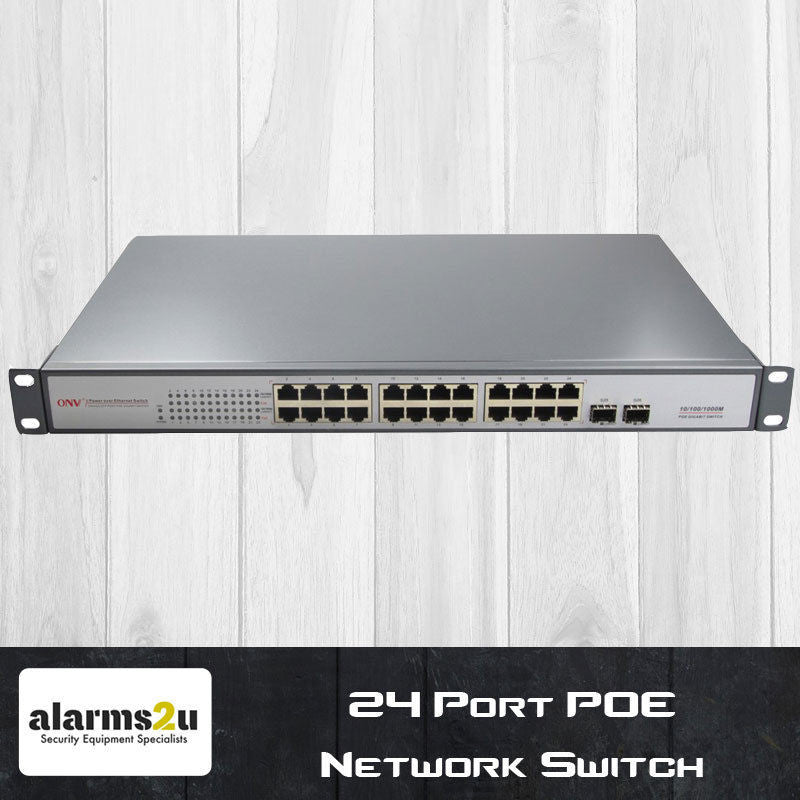

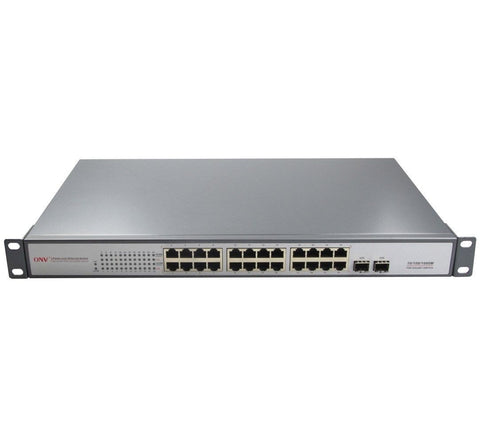

ONV 24 Port Gigabit Network Switch w/ 24 Port POE + 2 SFP Uplinks
Features:
The ONV-POE33024PF achieves up to 10 times faster Fast Ethernet speed and 15.4W output power per port. It is widely used in network terminal hybrid networking applications, reducing energy consumption by 60%.
List of technical parameters | |
Product name | 24PG + 2GF 26-port Gigabit PoE power supply switch |
Product number | ONV-POE33024PF |
Port description | 24 10/100 / 1000M copper RJ45 ports (all ports support MDI / MDIX adaptive), 2 Gigabit SFP optical interface |
Network media | 100BASE-TX: Category 5 and above unshielded twisted pair (≤100 meters), 1000BASE-T: Category 5 and above unshielded twisted pair (≤ 100 meters) |
Backplane bandwidth | 52G |
Forwarding mode | Store-and-forward (wire-speed forwarding), packet forwarding rate: 38.7Mpps |
MAC address list | 8K |
Network protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.3af, IEEE802.3at |
PoE port | 1-24 ports support IEEE802.3af (15.4W) network power supply |
PoE standards | In line with IEEE 802.3af / at international standards, single-port maximum power supply 30W |
PoE type | The default end spanning method |
PoE port features | Each port power 15.4W (IEEE802.3af) / 30W (IEEE802.3at) |
PoE transmission line core | Only 1/2 +, 3/6-wire pairs are supported |
Total PoE power | 400W |
Other network management functions | Optional support for bandwidth flow control models |
Environmental specifications | Operating temperature: -20 ° ~ 55 ° C, storage temperature: -40 ° ~ 75 ° C, operating humidity: 10% ~ 90%, non-condensing, storage humidity: 5% ~ 95%, non-condensing, 3000 m (10,000 ft), Storage Elevation: 3000 m (10,000 ft) above sea level |
Electromagnetic radiation | CE mark, commercial, FCC Part 15 Class B, VCCI Class B EN 55022 (CISPR 22), Class B |

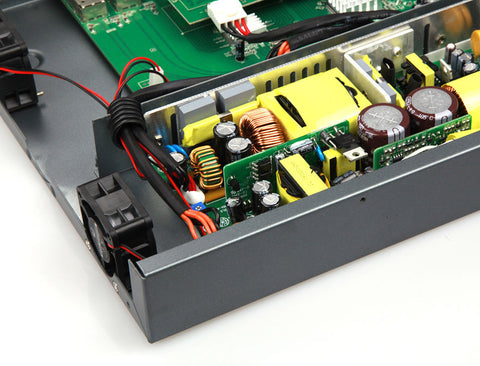

power supply | Input AC100-240V 50-60Hz, 400W |
LEDs | Power-PWR, network-Link, PoE working state |
Physical specifications | 440 x 275 x 44.5 mm, 5 kg |
After-sales service | Switch 1 year warranty, life-long maintenance |
Package Contents | Switches, AC power cords, hardware installation kits, installation guides, warranty / customer support information cards |
